Wireless
Wireless Standards: IEEE 802.11b/g/n
Frequency: 2.4 GHz
Signal Rate: 300 Mbps
Reception Sensitivity:
- 11g 54M: -74.5 dBm
- 11n HT20 MCS7: -73.5 dBm
- 11n HT40 MCS7: -70.5 dBm
Transmission Power: < 20 dBm (2.4 GHz)
Wireless Security: WPA-PSK / WPA2-PSK
Wireless Functions: Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics
Software
DHCP: Server
Hardware
Dimensioni (W X D X H): 219 × 140 × 32 mm (8.62 × 5.51 × 1.26 in)
Interfaces:
- 1× 10/100Mbps LAN/WAN Port
- 3× 10/100Mbps LAN Ports

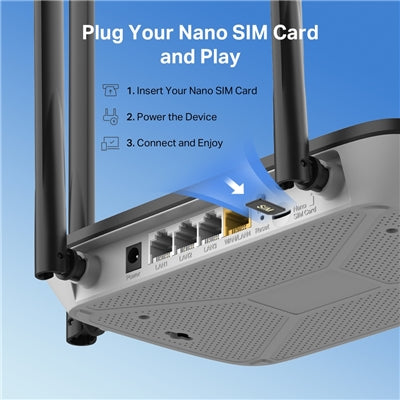

- 1× Nano SIM Card Slot
Button: WPS, Reset Button
Ethernet Ports:
- 1× 10/100 Mbps LAN/WAN Port
- 3× 10/100 Mbps LAN Ports
Network Type:
- FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz)
- TDD-LTE: B38/B40 (2600/2300 MHz)
- HSPA+/UMTS: B1/B5/B8 (2100/850/900 MHz)
Altro
Package Contents:

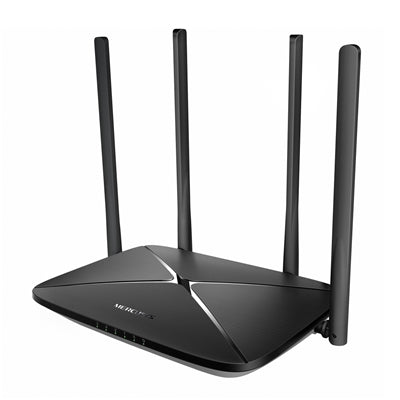

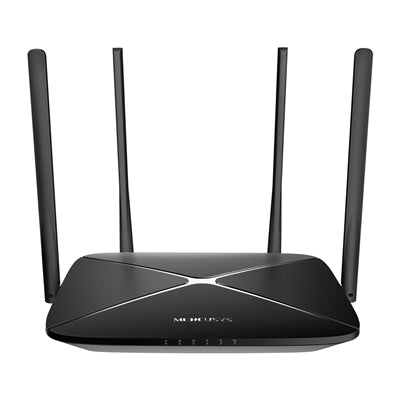

- 300 Mbps Wireless N 4G LTE Router (MB115-4G)
- Power Adapter
- RJ45 Ethernet Cable
- Quick Installation Guide
Environment:
- Operating Temperature: 0°C~40°C (32°F~104°F)
- Storage Temperature: -40°C~60°C (-40°F~140°F)
- Operating Humidity: 10%~90% Non-Condensing
- Storage Humidity: 5%~90% Non-Condensing
