General Specifications

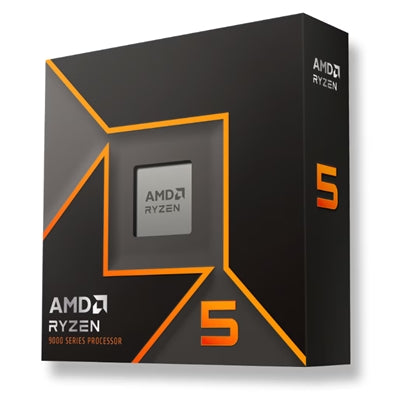

Name: AMD Ryzen™ 5 9600X
Family: Ryzen
Series: Ryzen 9000 Series
Form Factor: Desktops, Boxed Processor
Market Segment: Enthusiast Desktop
AMD PRO Technologies: No
Former Codename: Granite Ridge AM5
Architecture: Zen 5
# of CPU Cores: 6
Multithreading (SMT): Yes
# of Threads: 12
Max. Boost Clock: Up to 5.4 GHz
Base Clock: 3.9 GHz
L1 Cache: 480 KB
L2 Cache: 6 MB
L3 Cache: 32 MB
Default TDP: 65W
Processor Technology for CPU Cores: TSMC 4nm FinFET
Processor Technology for I/O Die: TSMC 6nm FinFET
Package Die Count: 2
Unlocked for Overclocking: Yes
AMD EXPO™ Memory Overclocking Technology: Yes
Precision Boost Overdrive: Yes
Curve Optimizer Voltage Offsets: Yes
AMD Ryzen™ Master Support: Yes
CPU Socket: AM5
Supporting Chipsets: A620, X670E, X670, B650E, B650, X870E, X870
CPU Boost Technology: Precision Boost 2
Instruction Set: x86-64
Supported Extensions: AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
Thermal Solution (PIB): Not Included
Recommended Cooler: Premium air cooler recommended for optimal performance
Max. Operating Temperature (Tjmax): 95°C
OS Support: Windows 11 - 64-Bit Edition, Windows 10 - 64-Bit Edition, RHEL x86 64-Bit, Ubuntu x86 64-Bit
Connectivity
Native USB 3.2 Gen 2 (10Gbps) Ports: 4
Native USB 2.0 (480Mbps) Ports: 1
PCI Express® Version: PCIe® 5.0
Native PCIe® Lanes (Total/Usable): 28, 24
Additional Usable PCIe Lanes from Motherboard:
- X870E: 8x Gen4
- X870: 4x Gen4
- X670E: 12x Gen4
- X670: 12x Gen4
- B650E: 8x Gen4
- B650: 8x Gen4
NVMe Support: Boot, RAID0, RAID1, RAID5, RAID10
System Memory Type: DDR5
Memory Channels: 2
Max. Memory: 192 GB
System Memory Subtype: UDIMM
Max Memory Speed:
- 2x1R: DDR5-5600
- 2x2R: DDR5-5600
- 4x1R: DDR5-3600
- 4x2R: DDR5-3600
ECC Support: Yes (Requires mobo support)
Graphics Capabilities
Graphics Model: AMD Radeon™ Graphics
Graphics Core Count: 2
Graphics Frequency: 2200 MHz
USB Type-C® DisplayPort™ Alternate Mode: Yes
Key Features
Supported Technologies: AMD EXPO™ Technology, AMD Ryzen™ Technologies
